Hilltop Link G4+/G4X Fury, Xtreme, Storm & Force ECU Tube Mount

Mount your Link ECU neatly and securely to round tubing without drilling into the tube or relying on a conventional flat mounting bracket.

The Hilltop Link ECU Tube Mount was developed as a lightweight, tidy alternative for motorsport and aftermarket installations. It is ideal for customers who have lost, sold or misplaced their original ECU bracket, do not have a suitable flat mounting surface, do not want to drill into their vehicle’s tubing, or simply want a cleaner tube-mounted solution.

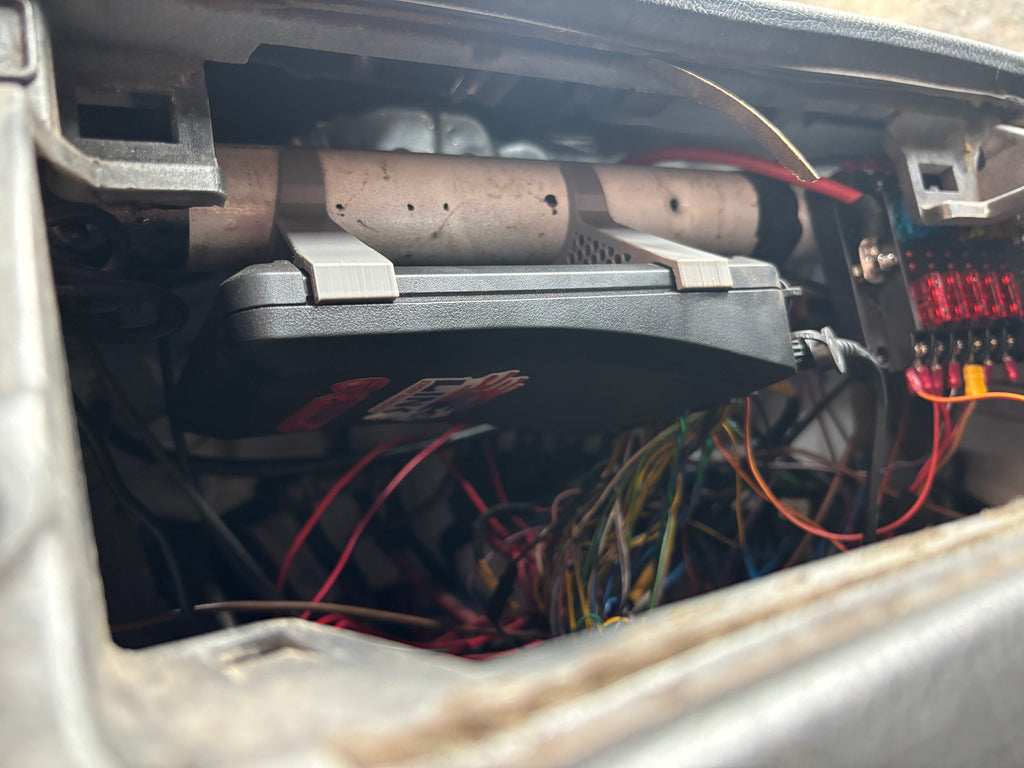

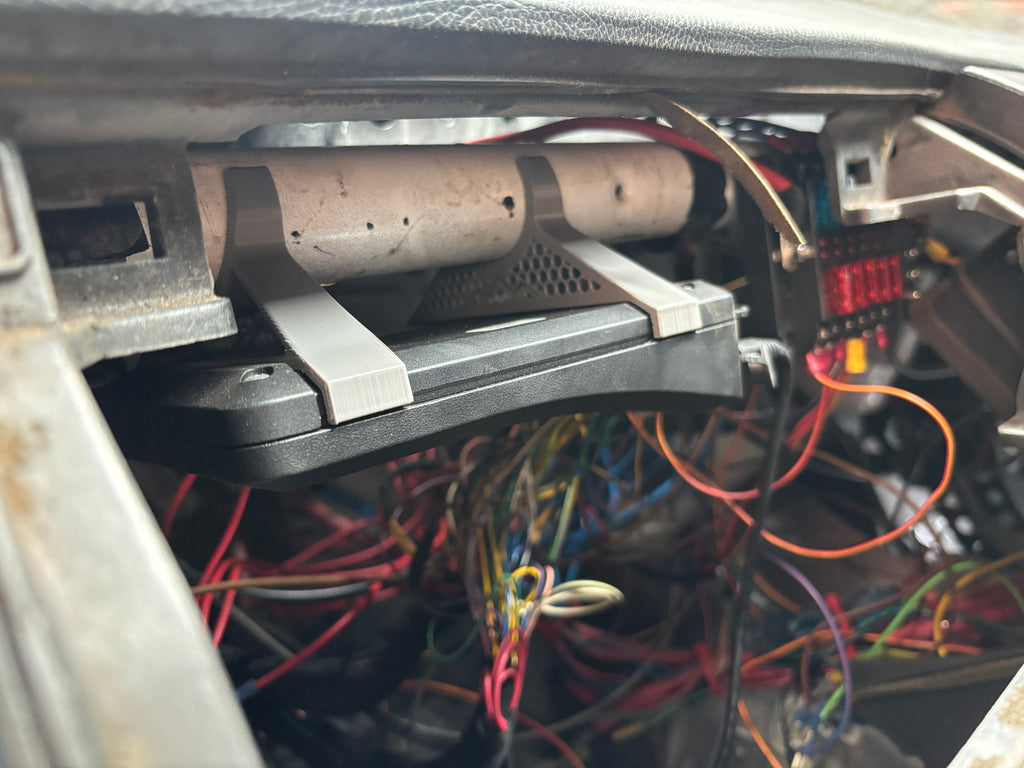

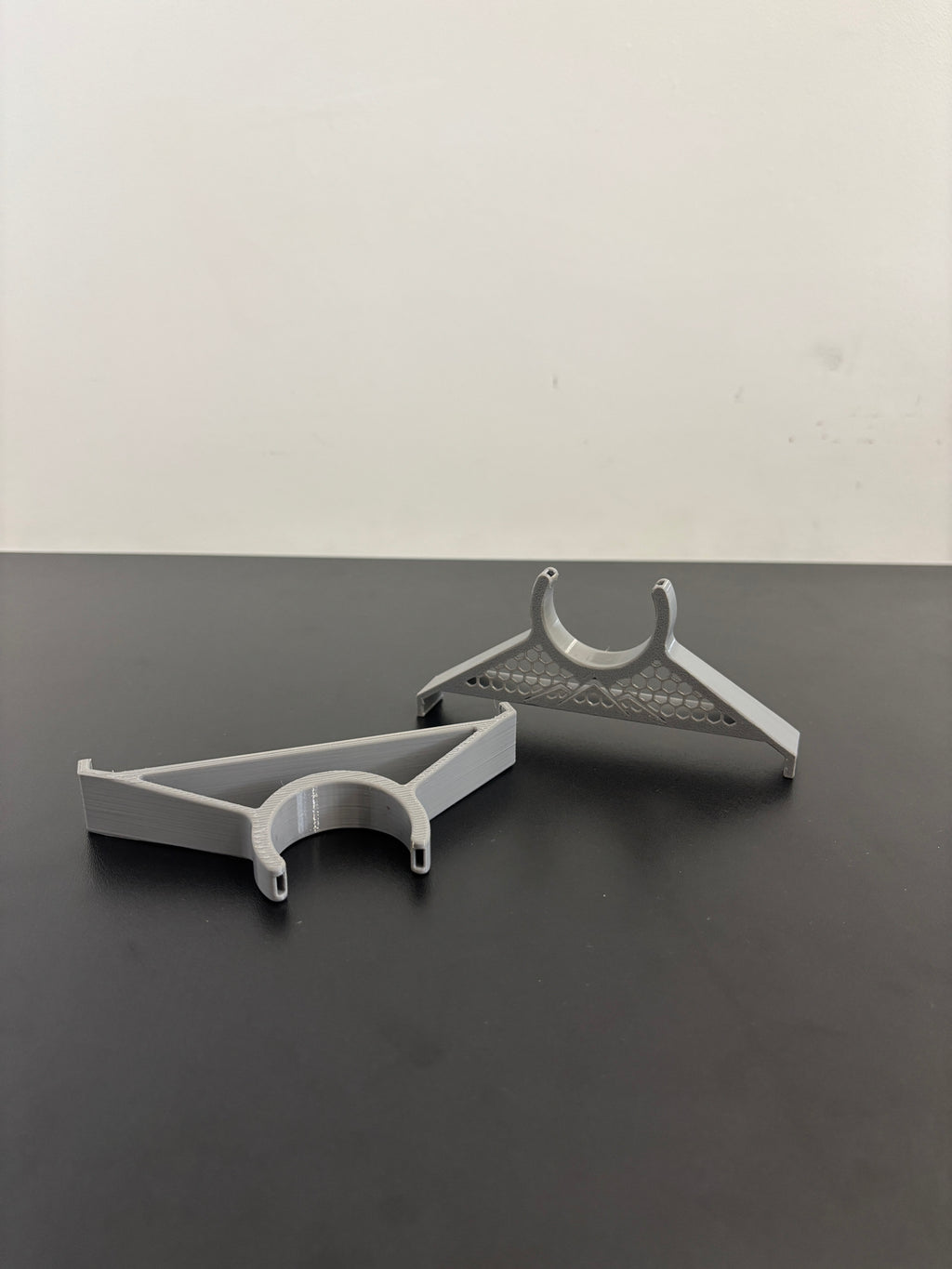

The pair of mounts use the original mounting profile on the rear of the ECU casing. Each mount clips onto the ECU and snaps around a 38mm outside-diameter round tube, while the supplied cable ties pass through the mounts to provide secondary retention.

With a complete installed weight of approximately 50g, the set provides a practical mounting solution without adding unnecessary weight or requiring permanent modification to the tubing.

Key Features

• Lightweight motorsport ECU mounting solution
• Approximately 50g including the supplied cable ties
• Fits around 38mm outside-diameter round tube
• No drilling required through the tube
• Uses the original mounting profile on the rear of the ECU casing
• Snap-fit design for straightforward installation
• Supplied cable ties provide secondary retention
• Can be positioned at any suitable angle around the tube
• Mount spacing can be adjusted along the ECU casing
• Designed and manufactured in-house in the UK
• Other tube sizes may be available on request

Available Options

Available as standard in:

• Graphite Grey
• Reflex Blue
• Stealth Black
• Jade White

Each set includes one pair of mounts in your selected colour.

Ideal For

• Motorsport vehicles
• Race and track cars
• Drift builds
• Rally and time-attack vehicles
• Custom wiring installations
• Aftermarket ECU conversions
• Fabricators and vehicle builders
• Customers replacing a missing or unwanted conventional ECU bracket

Compatibility & Fitment

The standard version is designed to snap around 38mm outside-diameter round tube.

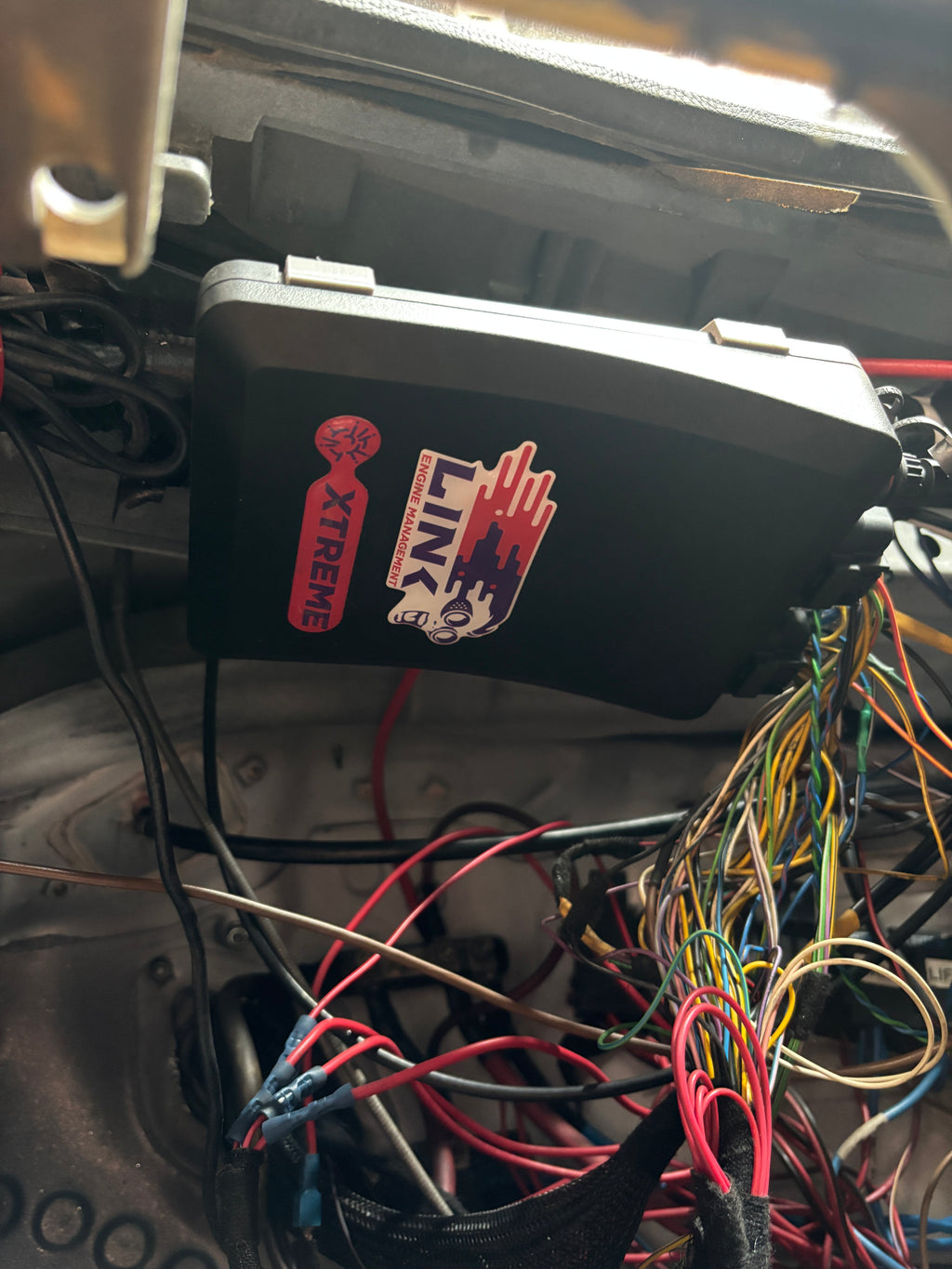

Physically tested by Hilltop Speed Shop using a Link G4X Xtreme ECU.

The mount uses the MTB1-style rear mounting profile associated with the following Link ECU families:

• Link G4+
• Link G4X Fury
• Link G4X Xtreme
• Link G4X Storm
• Link G4X Force

Fitment has currently only been physically confirmed by Hilltop Speed Shop on the G4X Xtreme. Compatibility with the additional listed ECU models is expected due to the shared mounting-bracket family but has not yet been independently verified by Hilltop Speed Shop.

The mounts can be installed at suitable positions along the ECU casing. Positioning them farther apart will generally provide greater stability.

They may be installed at any suitable orientation around the tube, subject to sufficient clearance for the ECU, wiring and surrounding components.

Compatibility Testers Wanted

Own a Link G4+, Fury, Storm or Force ECU?

Contact us before ordering. Approved customers will receive 50% off in exchange for confirming fitment and supplying clear installation photographs and feedback.

Approval must be obtained before placing the order. This offer is intended to help Hilltop Speed Shop verify compatibility with additional ECU models and may be withdrawn once sufficient testing has been completed.

Custom Tube Sizes

Need the mount for a different tube diameter?

Alternative round-tube sizes may be produced on request. Please contact us before ordering with:

• Required tube outside diameter
• ECU model
• Installation details
• Any relevant clearance restrictions

Custom sizes are priced from £21.99 and normally require a manufacturing lead time of 5–7 working days.

What’s Included?

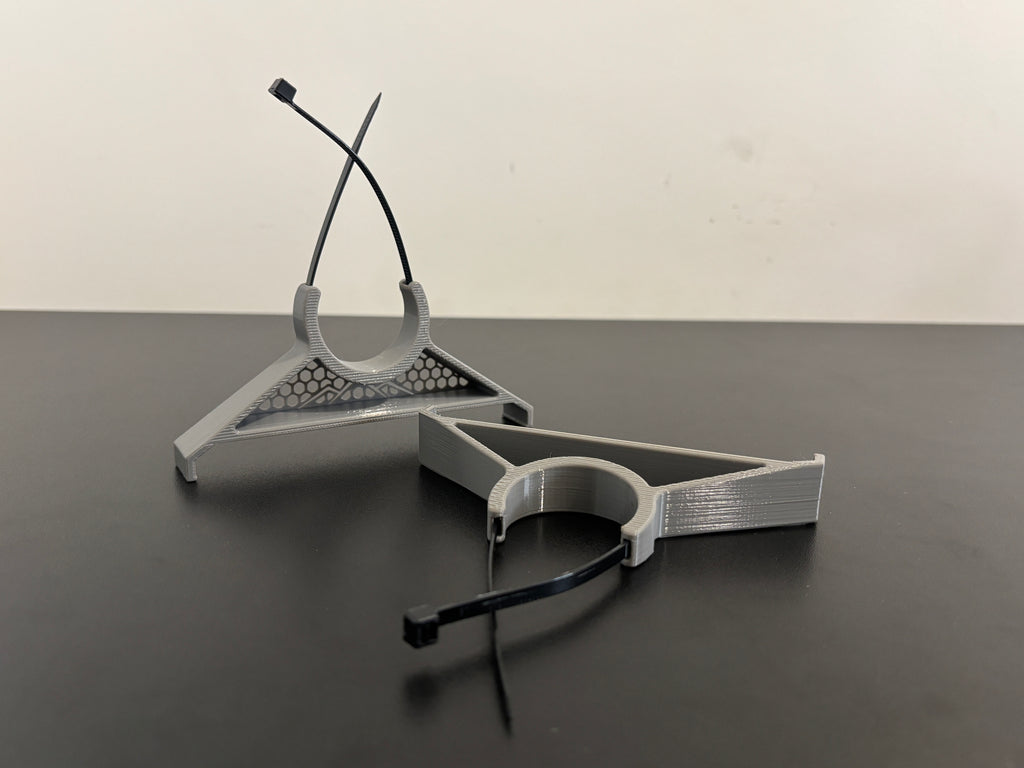

• 2 × Hilltop Link ECU Tube Mounts
• 2 × Cable ties

The ECU, wiring, tubing and any other components shown in the product photographs are not included.

Manufacturing Lead Times

This product is batch manufactured in-house in the UK.

Please allow approximately 1–3 working days for manufacture and preparation before dispatch. Some colour options may be available from stock and dispatched sooner.

Custom tube sizes normally require 5–7 working days.

Postage & Dispatch

All orders are securely packaged and dispatched using a tracked postal service.

Please allow the stated manufacturing lead time before dispatch. Tracking details will be provided once your order has been sent.

Please Note

• Designed for round tube only
• The standard version fits 38mm outside-diameter tubing
• Not designed for flat mounting surfaces
• Not suitable for engine-bay, high-temperature or water-exposed environments
• Check ECU, wiring and surrounding-component clearance before installation
• The supplied cable ties must be fitted correctly as secondary retention
• Installation and suitability remain the responsibility of the customer
• This is an aftermarket Hilltop Speed Shop product
• It is not manufactured, endorsed or approved by Link Engine Management
• Due to the manufacturing process, minor cosmetic layer lines may be visible
